Shape-shifting fiber can produce morphing fabrics
The low-cost FibeRobo, which is compatible with existing textile manufacturing techniques, could be used in adaptive performance wear or compression garments.
IMAGE:
RESEARCHERS FROM MIT AND NORTHEASTERN UNIVERSITY DEVELOPED A LIQUID CRYSTAL ELASTOMER FIBER THAT CAN CHANGE ITS SHAPE IN RESPONSE TO THERMAL STIMULI. THE FIBER, WHICH IS FULLY COMPATIBLE WITH EXISTING TEXTILE MANUFACTURING MACHINERY, COULD BE USED TO MAKE MORPHING TEXTILES, LIKE A JACKET THAT BECOMES MORE INSULATING TO KEEP THE WEARER WARM WHEN TEMPERATURES DROP.
view moreCREDIT: IMAGE COURTESY OF JACK FORMAN, ET AL
CAMBRIDGE, Mass. -- Instead of needing a coat for each season, imagine having a jacket that would dynamically change shape so it becomes more insulating to keep you warm as the temperature drops.
A programmable, actuating fiber developed by an interdisciplinary team of MIT researchers could someday make this vision a reality. Known as FibeRobo, the fiber contracts in response to an increase in temperature, then self-reverses when the temperature decreases, without any embedded sensors or other hard components.
The low-cost fiber is fully compatible with textile manufacturing techniques, including weaving looms, embroidery, and industrial knitting machines, and can be produced continuously by the kilometer. This could enable designers to easily incorporate actuation and sensing capabilities into a wide range of fabrics for myriad applications, such as programmable compression garments that could aid in post-surgery recovery.
The fibers can also be combined with conductive thread, which acts as a heating element when electric current runs through it. In this way, the fibers actuate using electricity, which offers a user digital control over a textile’s form. For instance, a fabric could change shape based on any piece of digital information, such as readings from a heart rate sensor.
“We use textiles for everything. We make planes with fiber-reinforced composites, we cover the International Space Station with a radiation-shielding fabric, we use them for personal expression and performance wear. So much of our environment is adaptive and responsive, but the one thing that needs to be the most adaptive and responsive — textiles — is completely inert,” says Jack Forman, a graduate student in the Tangible Media Group and the Center for Bits and Atoms in the MIT Media Lab, and lead author of a paper on the actuating fiber.
He is joined on the paper by 11 other researchers at MIT and Northeastern University, including his advisors, Professor Neil Gershenfeld, who leads the Center for Bits and Atoms, and Hiroshi Ishii, the Jerome B. Wiesner Professor of Media Arts and Sciences and director of the Tangible Media Group. The research will be presented at the ACM Symposium on User Interface Software and Technology.
Morphing materials
Current shape-changing fibers have pitfalls that have largely prevented them from being incorporated into textiles beyond laboratory settings.
One fiber, known as a shape-changing alloy, only contracts by about 5 percent, doesn’t self-reverse, and often stops working after a handful of actuations. Another, called a McKibben actuator, is pneumatically driven and requires an air compressor to actuate.
The MIT researchers wanted a fiber that could actuate silently and change its shape dramatically, while being compatible with common textile manufacturing procedures. To achieve this, they used a material known as liquid crystal elastomer (LCE).
A liquid crystal is a series of molecules that can flow like liquid, but when they’re allowed to settle, they stack into a periodic crystal arrangement. The researchers incorporate these crystal structures into an elastomer network, which is stretchy like a rubber band.
As the LCE material heats up, the crystal molecules fall out of alignment and pull the elastomer network together, causing the fiber to contract. When the heat is removed, the molecules return to their original alignment, and the material to its original length, Forman explains.
By carefully mixing chemicals to synthesize the LCE, the researchers can control the final properties of the fiber, such as its thickness or the temperature at which it actuates.
They perfected a preparation technique that creates LCE fiber which can actuate at skin-safe temperatures, making it suitable for wearable fabrics. Researchers had been unable to accomplish this with other LCE fibers, Forman says.
“There are a lot of knobs we can turn. It was a lot of work to come up with this process from scratch, but ultimately it gives us a lot of freedom for the resulting fiber,” he adds.
However, the researchers discovered that making fiber from LCE resin is a finicky process. Existing techniques often result in a fused mass that is impossible to unspool.
Researchers are also exploring other ways to make functional fibers, such as by incorporating hundreds of microscale digital chips into a polymer, utilizing an activated fluidic system, or including piezoelectric material that can convert sound vibrations into electrical signals.
Fiber fabrication
Forman built a machine using 3D-printed and laser-cut parts and basic electronics to overcome the fabrication challenges. He initially built the machine as part of the graduate-level course MAS.865 (Rapid-Prototyping of Rapid-Prototyping Machines: How to Make Something that Makes (almost) Anything).
To begin, the thick and viscous LCE resin is heated, and then slowly squeezed through a nozzle like that of a glue gun. As the resin comes out, it is cured carefully using UV lights that shine on both sides of the slowly extruding fiber.
If the light is too dim, the material will separate and drip out of the machine, but if it is too bright, clumps can form, which yields bumpy fibers.
Then the fiber is dipped in oil to give it a slippery coating and cured again, this time with UV lights turned up to full blast, creating a strong and smooth fiber. Finally, it is collected into a top spool and dipped in powder so it will slide easily into machines for textile manufacturing.
From chemical synthesis to finished spool, the process takes about a day and produces approximately a kilometer of ready-to-use fiber.
“At the end of the day, you don’t want a diva fiber. You want a fiber that, when you are working with it, falls into the ensemble of materials — one that you can work with just like any other fiber material, but then it has a lot of exciting new capabilities,” Forman says.
Creating such a fiber took a great deal of trial and error, as well as the collaboration of researchers with expertise in many disciplines, from chemistry to mechanical engineering to electronics to design.
The resulting fiber, called FibeRobo, can contract up to 40 percent without bending, actuate at skin-safe temperatures, and be produced with a low-cost setup for 20 cents per meter, which is about 60 times cheaper than commercially available shape-changing fibers.
The fiber can be incorporated into industrial sewing and knitting machines, as well as nonindustrial processes like hand looms or manual crocheting, without the need for any process modifications.
The MIT researchers used FibeRobo to demonstrate several applications, including an adaptive sports bra made by embroidery that tightens when the user begins exercising.
They also used an industrial knitting machine to create a compression jacket for Forman’s dog, whose name is Professor. The jacket would actuate and “hug” the dog based on a Bluetooth signal from Forman’s smartphone. Compression jackets are commonly used to alleviate the separation anxiety a dog can feel while its owner is away.
In the future, the researchers want to adjust the fiber’s chemical components so it can be recyclable or biodegradable. They also want to streamline the polymer synthesis process so users without wet lab expertise could make it on their own.
Forman is excited to see the FibeRobo applications other research groups identify as they build on these early results. In the long run, he hopes FibeRobo can become something a maker could buy in a craft store, just like a ball of yarn, and use to easily produce morphing fabrics.
This research was supported, in part, by the William Asbjornsen Albert Memorial Fellowship, the Dr. Martin Luther King Jr. Visiting Professor Program, Toppan Printing Co., Honda Research, Chinese Scholarship Council, and Shima Seiki. The team included Ozgun Kilic Afsar, Sarah Nicita, Rosalie (Hsin-Ju) Lin, Liu Yang, Akshay Kothakonda, Zachary Gordon, and Cedric Honnet at MIT; and Megan Hofmann and Kristen Dorsey at Northeastern University.
###
Written by Adam Zewe, MIT News
Paper: “FibeRobo: Fabricating 4D Fiber Interfaces by Continuous Drawing of Temperature Tunable Liquid Crystal Elastomers”
https://dl.acm.org/doi/10.1145/3586183.3606732
ARTICLE TITLE
“FibeRobo: Fabricating 4D Fiber Interfaces by Continuous Drawing of Temperature Tunable Liquid Crystal Elastomers”
Multimodal graphene-based e-textiles for the realization of customized e-textiles have been developed for the first time in the world
KIMM-KAIST joint research team develops graphene-enabled e-textiles by ultrashort pulse laser processing
Peer-Reviewed PublicationIMAGE:

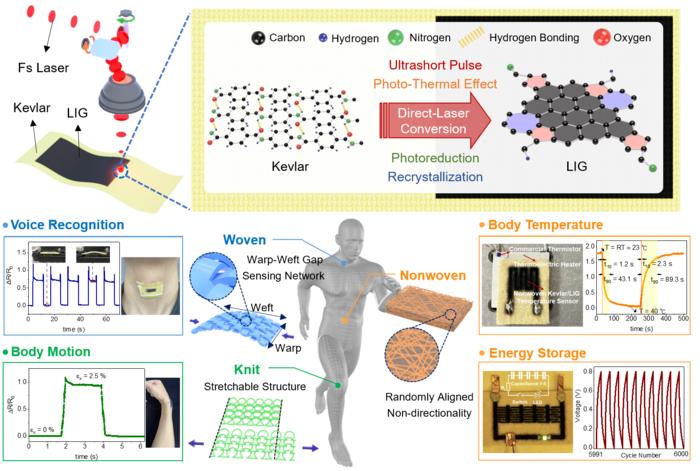

(ABOVE) INTRODUCTION ON E-TEXTILES AND (BELOW) COMPARISON OF METHODS FOR MANUFACTURING E-TEXTILES
view moreCREDIT: KOREA INSTITUTE OF MACHINERY AND MATERIALS (KIMM
Multimodal* graphene-based electronic textiles (e-textiles) for the realization of customized e-textiles have been developed for the first time in the world.
* Multimodal means the process by which information is exchanged through various sensory interfaces such as visual sensation and auditory sensation.
The joint research team led by Principal Researcher Soongeun Kwon of the Department of Nano Manufacturing Technology of the Korea Institute of Machinery and Materials (President Sang-jin Park, hereinafter referred to as KIMM), an institute under the jurisdiction of the Ministry of Science and ICT, and Professor Young-Jin Kim of the Department of Mechanical Engineering of the Korea Advanced Institute of Science and Engineering (President Kwang-hyung Lee, hereinafter referred to as KAIST) developed graphene-based, customized e-textiles for the first time in the world, and published the findings in “ACS Nano (IF = 18.027),” a renowned scientific journal.
*Title of publication: “Multimodal E-Textile Enabled by One-Step Maskless Patterning of Femtosecond-Laser-Induced Graphene on Nonwoven, Knit, and Woven Textiles (2023.10.10.)”
Instead of using toxic chemicals or optical masks for patterning, the joint research team used the laser direct patterning technology* to form laser-induced graphene (LIG) on e-textiles and successfully manufactured graphene-based e-textiles.
* Laser direct patterning technology refers to the technology used for making patterns for functional materials by irradiating laser onto the surface of the garment so that the materials of only the parts reached by the laser are converted.
* When high-power laser is irradiated to the surface of a polymer film or a garment, the light energy is converted into thermal energy on the surface and a carbon material is instantly fabricated on the part where the laser is irradiated. This is called laser-induced graphene (LIG), as the crystal structure of the fabricated carbon material is similar to graphene, a two-dimensional nanomaterial.
Conventionally, e-textiles have been manufactured by coating fabrics with conductive ink to make electrically conductive textiles and then weaving them with generic fabrics, or by attaching a thin, functional layer onto generic fabrics. These methods have a low design flexibility and high process complexity. Moreover, harmful chemicals may be leaked during the manufacturing process, which places a limitation on mass production.
By using the newly developed technology, high-quality LIG materials that have world-class electrical conductivity can be manufactured simply by irradiating laser onto the surface of fabrics. A major advantage of this technology is that e-textiles can be manufactured in an environmentally friendly manner, as neither the use of chemicals nor any additional processing is required. Meanwhile, the world-class electrical conductivity of LIG electrodes has been realized by applying the femtosecond laser processing technology*.
* Femtosecond laser processing technology is the technology for fabricating materials using ultrashort laser that has an extremely short pulse width and a high peak power. Compared with other lasers, this technology causes almost no damage to the materials and, therefore, is useful for making high resolution patterns.
The newly developed technology can be used in the future for manufacturing industrial and military clothes for personal health management and also for producing customized “smart” clothes in the healthcare sector.
Principal Researcher Soongeun Kwon of the KIMM was quoted as saying, “This technology has been developed by analyzing the structures of generic fabrics and realizing them as graphene-based materials that have advanced features of optimal e-textiles.” He added, “This technology is significantly meaningful in that it allows for the mass production of customized e-textiles using an environment-friendly and simple method.”
Meanwhile, this research was carried out with the support of the project for the “development of nano-based “Omni-TEX” manufacturing technologies,” one of the KIMM’s basic projects.
A cover image of the journal paper published in ACS Nano
CREDIT
Korea Institute of Machinery and Materials (KIMM)
This research was carried out with the support of the project for the “development of nano-based “Omni-TEX” manufacturing technologies,” one of the KIMM’s basic projects.
JOURNAL
ACS Nano
DOI
10.1021/acsnano.3c04120
ARTICLE TITLE
Multimodal E-Textile Enabled by One-Step Maskless Patterning of Femtosecond-Laser-Induced Graphene on Nonwoven, Knit, and Woven Textiles
