New organic thermoelectric device that can harvest energy at room temperature
Researchers have succeeded in developing a framework for organic thermoelectric power generation from ambient temperature and without a temperature gradient
image:

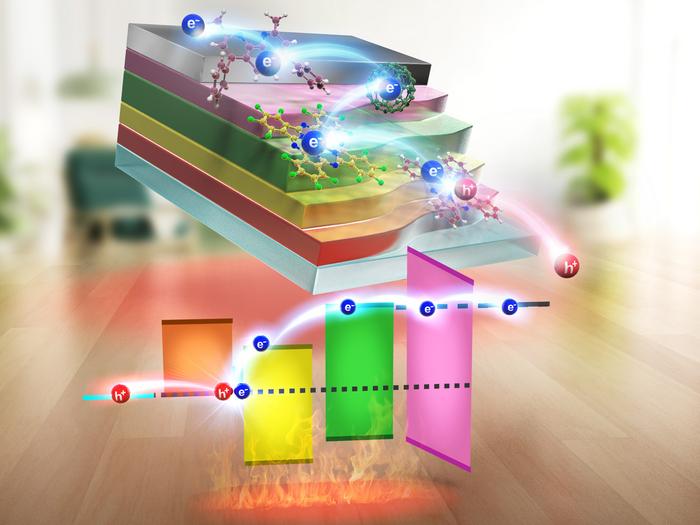

This new organic thermoelectric device can convert room temperature heat, which is abundant in living environments and was previously not considered a possible energy source, into usable electrical energy. As no temperature gradient is required, meaning no cooling unit is required, the device can be made compact.
view moreCredit: Kyushu University/Chihaya Adachi
Fukuoka, Japan—Researchers have developed a new organic thermoelectric device that can harvest energy from ambient temperature. While thermoelectric devices have several uses today, hurdles still exist to their full utilization. By combining the unique abilities of organic materials, the team succeeded in developing a framework for thermoelectric power generation at room temperature without any temperature gradient. Their findings were published in the journal Nature Communications.
Thermoelectric devices, or thermoelectric generators, are a series of energy-generating materials that can convert heat into electricity so long as there is a temperature gradient—where one side of the device is hot and the other side is cool. Such devices have been a significant focus of research and development for their potential utility in harvesting waste heat from other energy-generating methods.
Perhaps the most well-known use of thermoelectric generators is in space probes such as the Mars Curiosity rover or the Voyager probe. These machines are powered by radioisotope thermoelectric generators, where the heat generated from radioactive isotopes provides the temperature gradient for the thermoelectric devices to power their instruments. However, due to issues including high production cost, use of hazardous materials, low energy efficiency, and the necessity of relatively high temperatures, thermoelectric devices remain underutilized today.
“We were investigating ways to make a thermoelectric device that could harvest energy from ambient temperature. Our lab focuses on the utility and application of organic compounds, and many organic compounds have unique properties where they can easily transfer energy between each other.” explains Professor Chihaya Adachi of Kyushu University’s Center for Organic Photonics and Electronics Research (OPERA) who led the study. “A good example of the power of organic compounds can be found in OLEDs or organic solar cells.”
The key was to find compounds that work well as charge transfer interfaces, meaning that they can easily transfer electrons between each other. After testing various materials, the team found two viable compounds: copper phthalocyanine (CuPc) and copper hexadecafluoro phthalocyanine (F16CuPc).
“To improve the thermoelectric property of this new interface, we also incorporated fullerenes and BCP,” continues Adachi. “These are known to be good facilitators of electron transport. Adding these compounds together significantly enhanced the device’s power. In the end, we had an optimized device with a 180 nm layer of CuPc, 320 nm of F16CuPc, 20 nm of fullerene, and 20 nm of BCP.”
The optimized device had an open-circuit voltage of 384 mV, a short-circuit current density of 1.1 μA/cm2, and a maximum output of 94 nW/cm2. Moreover, all these results were achieved at room temperature without the use of a temperature gradient.
“There have been considerable advances in the development of thermoelectric devices, and our new proposed organic device will certainly help move things forward,” concludes Adachi. “We would like to continue working on this new device and see if we can optimize it further with different materials. We can even likely achieve a higher current density if we increase the device’s area, which is unusual even for organic materials. It just goes to show that organic materials hold amazing potential.”
###
For more information about this research, see “Organic Thermoelectric Device Utilizing Charge Transfer Interface as the Charge Generation by Harvesting Thermal Energy," Shun Kondo, Mana Kameyama, Kentaro Imaoka, Yoko Shimoi, Fabrice Mathevet, Takashi Fujihara, Hiroshi Goto, Hajime Nakanotani, Masayuki Yahiro, and Chihaya Adachi, Nature Communications, https://doi.org/10.1038/s41467-024-52047-5
About Kyushu University
Founded in 1911, Kyushu University is one of Japan's leading research-oriented institutes of higher education, consistently ranking as one of the top ten Japanese universities in the Times Higher Education World University Rankings and the QS World Rankings. The university is one of the seven national universities in Japan, located in Fukuoka, on the island of Kyushu—the most southwestern of Japan’s four main islands with a population and land size slightly larger than Belgium. Kyushu U’s multiple campuses—home to around 19,000 students and 8000 faculty and staff—are located around Fukuoka City, a coastal metropolis that is frequently ranked among the world's most livable cities and historically known as Japan's gateway to Asia. Through its VISION 2030, Kyushu U will “drive social change with integrative knowledge.” By fusing the spectrum of knowledge, from the humanities and arts to engineering and medical sciences, Kyushu U will strengthen its research in the key areas of decarbonization, medicine and health, and environment and food, to tackle society’s most pressing issues.
Journal
Nature Communications
Method of Research
Experimental study
Subject of Research
Not applicable
Article Title
Organic Thermoelectric Device Utilizing Charge Transfer Interface as the Charge Generation by Harvesting Thermal Energy
