Placing nanoparticles in the palm of your hand
Anne Bentley, chemistry professor at Lewis & Clark College, has developed an innovative way to teach nanoscience, using 3D-printed models that make the unseen visible
IMAGE:

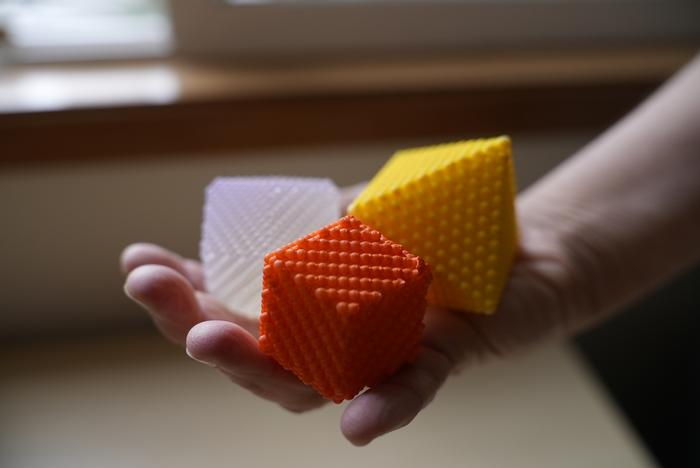

ANNE BENTLEY, ASSOCIATE PROFESSOR OF CHEMISTRY AT LEWIS & CLARK COLLEGE IN PORTLAND, OREGON, HAS DEVELOPED AN INNOVATIVE WAY TO TEACH NANOSCIENCE, USING 3D-PRINTED MODELS THAT MAKE THE UNSEEN VISIBLE
view moreCREDIT: STEPHEN MERCIER / LEWIS & CLARK COLLEGE
Nanoparticles are super tiny―as small as one nanometer, or one billionth of a meter―and are of keen interest to materials scientists for their unique physical and chemical properties. They cannot be detected by the naked eye and require a highly specialized electron microscope to be seen.
In fact, advancements in imaging technologies through the 1990s and early 2000s are what made the field of nanoscience possible, says Anne Bentley, a faculty member in the Department of Chemistry at Lewis & Clark College in Portland, Oregon.
“I think a lot of chemistry is outside the realm of what people can hold in their hands,” she says. “You can obtain evidence about what’s going on, but you’re still investigating something that’s at too small a scale for your eyes to see. Anything you can do to scale it up is helpful.”
So Bentley did just that, creating 3D models of the simplest geometric shapes that nanoparticles form. She has made the instructions for creating these models, either with paper or 3D-printing material, available as part of an article she co authored, published in the Journal of Chemical Education, called: “A Primer on Lattice Planes, Crystal Facets, and Nanoparticle Shape Control.”
A Primer for Materials Chemistry Students
Nanoparticles come in different geometric shapes and are crystalline, or composed of atoms arranged in a pattern that repeats in three dimensions. The shapes display flat surfaces, called planes or facets, similar to the cuts in a gemstone. The arrangement of atoms on these crystal surfaces influences the material’s special properties, says Bentley.
“The shapes are derived from this packing of the atoms,” she says. “The motivation to make different shapes really comes down to the arrangement of the atoms when the material is sliced in different ways on different crystal planes.
In the paper, Bentley focuses on low-index shapes, which she describes as the three simplest ways to slice the structure.
“There are lots more complex ways to slice it, but these are the three fundamental ways to do it, by making them either six, eight, or twelve sides―cubes, octahedra, or rhombic dodecahedra. It was a natural choice to focus on those three for the article.”
Transforming a “Jumble of Numbers” Into Shapes
“Nanoscience is a topic that both falls between chemistry and physics in the curriculum, but also between undergraduate- and graduate-level research,” says Bentley. “It’s important that beginning materials chemists have a fundamental understanding of crystal planes, facets, and directions of growth. They also need to understand the three-digit notation system used to index these attributes, known as the Miller indices. Otherwise, this system can look like a mysterious jumble of numbers.”
She felt it was important to provide a foundation of knowledge in an accessible format that could aid educators in introducing this important and growing field. While more complex structures than the 3D-printed models can be created digitally via computer simulation programs, Bentley believes that there are advantages to being able to hold the models in your hands.
“I like things I can look at and think about,” she says, adding 3D models are particularly useful for generating an understanding of this key nanoscience topic.
Growing Gold Particles to Convert Carbon Dioxide
In Bentley’s lab, she and students work on manipulating gold atoms in vials of liquid to control the nanoparticle shapes.
“You need to just make the right conditions at the right temperatures, a whole environment that is conducive to growing a particular shape,” she says.
Bentley studies gold nanoparticles, which are notable for their catalytic properties, or ability to accelerate chemical reactions. The way the material is sliced exposes different patterns of atoms, she explains. Previous research has identified that one particular gold nanoparticle shape, the 12-sided rhombic dodecahedra, is more effective for converting carbon dioxide into fuel materials.
“It’s like recycling,” says Bentley. “Not only does this nanoparticle shape enable researchers to remove carbon dioxide from the atmosphere, but it allows them to turn it back into some kind of fuel that can be used. So if we can grow particles that have this facet on them only, that’s a real advantage.”

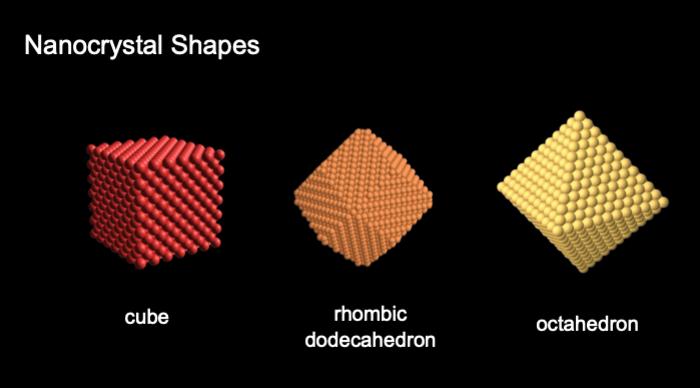

Three fundatmental nanoparticle shapes: cubes, octahedra, or rhombic dodecahedra
CAPTION

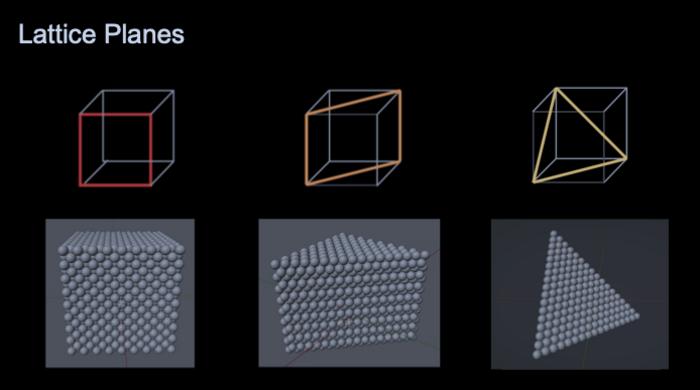

This image demonstrates how three families of planes in the face-centered cube extended crystal lattice are defined relative to the unit cell, how atoms are packed on the surfaces of these planes, and how these planes can form the crystal facets of three nanoparticle shapes.
This image demonstrates how three families of planes in the face-centered cube extended crystal lattice are defined relative to the unit cell, how atoms are packed on the surfaces of these planes, and how these planes can form the crystal facets of three nanoparticle shapes.
CREDIT
Anne Bentley / Lewis & Clark College
Anne Bentley / Lewis & Clark College
About Anne Bentley
Anne K. Bentley is the Dr Robert B. Pamplin Jr Associate Professor of Science at Lewis & Clark College, where she studies the chemistry of nanoscale materials and teaches general, inorganic, and nanomaterials chemistry. Her research has been supported by the National Science Foundation (NSF), the Camille & Henry Dreyfus Foundation, and the W. M. Keck Foundation. Since 2014, she has served on the leadership team of the Interactive Online Community of Inorganic Chemists (IONiC), a national group supporting and studying the teaching of inorganic chemistry. Professor Bentley has recently been recognized with the American Chemical Society’s Rising Star Award (2020), Lewis & Clark’s Division of Student Life Partner Award (2021), and the Lorry Lokey Faculty Excellence Award (2022).
JOURNAL
Journal of Chemical Education
METHOD OF RESEARCH
Literature review
SUBJECT OF RESEARCH
Not applicable
ARTICLE TITLE
A Primer on Lattice Planes, Crystal Facets, and Nanoparticle Shape Control
