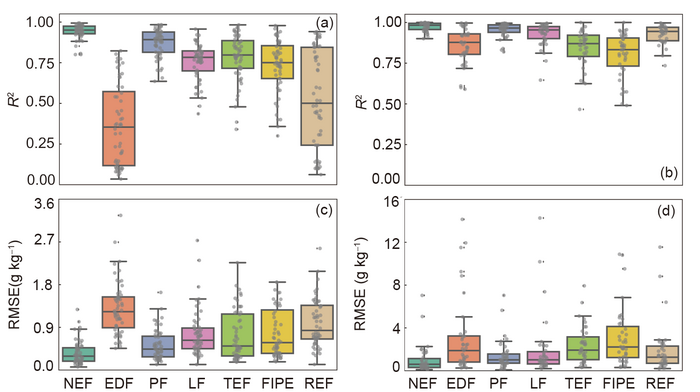

IMAGE: THE BOX CHART SHOWING THE DETERMINATION COEFFICIENT (R2) AND ROOT MEAN SQUARE ERROR (RMSE) OF SEVEN DEPTH DISTRIBUTION FUNCTIONS IN FITTING SOC CONCENTRATION ALONG SOIL PROFILES ON CHINA’S LOESS PLATEAU (A, C) AND OTHER REGIONS (SOUTHEAST CHINA, SOUTHERN KENYA AND SOUTHEAST BRAZIL TOGETHER) (B, D). THE UPPER, INTERMEDIATE AND LOWER EDGES OF BOX INDICATE THE 75% QUARTILES, MEDIAN AND 25% QUARTILES OF THE R2 OR RMSE, RESPECTIVELY. THE GRAY POINT IS R2 OR RMSE OF EACH MEASURED PROFILE. THE X-AXIS IS THE SEVEN DEPTH DISTRIBUTION FUNCTIONS. NEF: NEGATIVE EXPONENTIAL FUNCTION; EDF: EXPONENTIAL DECAY FUNCTION; PF: POWER FUNCTION; LF: LOGARITHMIC FUNCTION; TEF: TYPE III EXPONENTIAL FUNCTION; FIPF: FIRST-DEGREE INVERSE POLYNOMIAL FUNCTION; REF: REVISED EXPONENTIAL FUNCTION.view more
Field sampling combined with laboratory analysis is the most commonly used approach to obtain deep soil organic carbon (SOC) data and has been widely applied for more than a century. This approach provides the most accurate measurement of deep SOC concentration but is highly time-consuming and labor-intensive and is not practical at large spatial scales. Alternatively, developing mathematical functions to predict SOC in deep soils offers a quick technique for regional assessment. The depth distribution function describing the vertical distribution of SOC with soil depth has been used to estimate the deep SOC concentration in various regions and ecosystems. This method requires SOC data collected from multiple layers with a depth of at least 100 cm to obtain the parameters of the function. Additionally, the fittings among various functions have been rarely compared, leading to large arbitrariness in selecting the depth distribution function and lower fit goodness of selected function for the measured data. Moreover, application of such method is mainly focused at the site scale. These drawbacks of the currently used approaches restrict the accurate estimation of deep soil SOC at regional or larger spatial scales.
Jingjing Wang et al. composed regional SOC datasets from the measured and International Soil Reference and Information Centre (ISRIC) Soil Information System database. The datasets were used to compare the results of the currently used 7 depth distribution functions in fitting the vertical distribution patterns of SOC to select the optimal depth distribution function. Then, the team developed a prediction approach of deep SOC at the regional scale, through analyzed the relationships of the optimal depth distribution function parameters and soil properties from 0-40 cm topsoil layers.
The team demonstrated that the negative exponential function can effectively simulate the SOC vertical distribution pattern along soil profiles in different regions, the parameters (i.e., Ce and k) in the negative exponential function was linearly correlated with SOC in topsoils (0-40 cm) at the regional scale. Combining the negative exponential function and the parameters derived from the above linear prediction relationships, the authors developed a quick approach to predict SOC concentration in deep soils (down to 500 cm) at the regional scale. This approach was demonstrated to perform well in predicting SOC in deep soils in various regions.
See the article:
Wang J, Wei X, Jia X, Huang M, Liu Z, Yao Y, Shao M. 2023. An empirical approach to predict regional organic carbon in deep soils. Science China Earth Sciences, 66(3): 583–593, https://doi.org/10.1007/s11430-022-1032-2
The C0 is measured surface soil organic carbon (SOC) concentration (g kg-1), k0 is the changing rate of SOC with soil depth within upper soils (0-40 cm) calculated from measured SOC, Ce is the SOC at the depth that the SOC is stable along profile (g kg-1), k is the changing rate of SOC with depth at a specific soil profile (cm-1). The Ce and k are parameters for negative exponential depth distribution function. The RMSE is the root mean square error of the relationship, R2 is determination coefficient of the relationship. The solid line is the fitted line of measured SOC to predicted SOC. Shaded area of solid line shows the 95% confidence interval.
The relationships of predicted SOC to measured SOC concentration along soil profiles at specific sites (0-500 cm, a) and whole region (0-200 cm, b) on China’s Loess Plateau. The RMSE is the root mean square error of the relationship, R2 is determination coefficient of the relationship. The dashed line is 1:1 line. The red solid line is the fitted line of measured SOC to predicted SOC. Shaded area of red solid line shows the 95% confidence interval.
