Body extension by using two mobile manipulators


Peer-Reviewed Publication

BEIJING INSTITUTE OF TECHNOLOGY PRESS CO., LTD

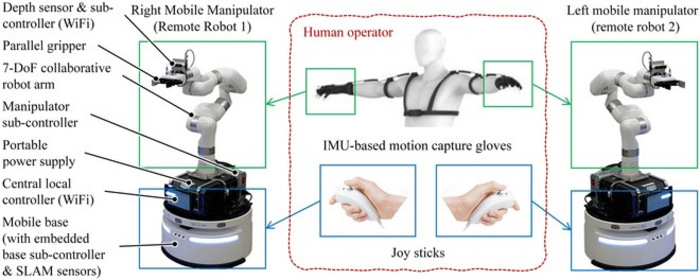

The remotely operated robotic system for body extension

IMAGE: ROBOTICISTS FROM OSAKA UNIVERSITY DEVELOPED A REMOTELY OPERATED ROBOTIC SYSTEM FOR OPERATING TASKS ON DANGEROUS OR HUMAN UNFRIENDLY ENVIRONMENTS view more

CREDIT: CYBORG AND BIONIC SYSTEMS

Imagine lying on a bed, you just have to move your fingers to guide a mobile robot to bring you a cup of water, open the door to fetch some deliveries, or even do some laundry. If you are interested, you may want to learn more about a new remotely operated robotic system based on two mobile manipulators. This system was developed by roboticists from Osaka University. They published a research paper describing this robotic system on Feb. 10 in the journal Cyborg and Bionic Systems.



Back in the year of 2013, Fukushima nuclear power plant witnessed a catastrophic radioactive leakage and contamination, which makes the surrounding area extremely dangerous for humans to stay and perform emergency tasks. Under this circumstance, many robots were deployed and controlled remotely, which greatly reduced the risks and harm to rescuers. Since then, remotely operated robotic systems have been a hot research topic.



“More than being used in radiation-exposed areas, there were also many field robots developed for collecting data at distant damaged sites caused by earthquakes or other man-made and natural disasters, medical sites without expert doctors, and outer space, etc.” said the study authors.



“The research interest in remote control has been further signified in the past 2 years as the coronavirus disease 2019 (COVID-19) pandemic restricted people’s movement. A series of robots were developed and remotely deployed at the Wuhan hospitals to assist doctors and patients” said Weiwei Wan, the corresponding author of this study, from the Graduate School of Engineering, Osaka University.



Compared with former research, which tends to contain one mobile base and one or two robotic arms mounted on this base, this study features two separate mobile bases. Each base is mounted with a manipulator. Each manipulator-mounted base is controlled by one hand. In particular, the human teleoperator’s poses of each hand were recorded by a motion capture system to control the poses of the respective robotic arm. In addition, the operator can move the two mobile bases using two joysticks. Therefore, these two mobile manipulators can work in a cooperative manner, like how we use our hands.



“The proposed idea of incorporating two independently movable manipulators for motion-tracking-based teleoperation is intriguing. However, there are some inherent issues to be addressed.” Said Wan, “First of all, how to map the postures of the human teleoperator’s two arms to the corresponding manipulator’s poses. In addition, how to avoid it when under some circumstances, the manipulator may collide with itself. Moreover, how to remotely monitor the two manipulators with the large operating range.” They believe they have addressed these issues by applying special routines and hand-mounted cameras.



They demonstrate this robotic system by picking up a coffee mug and handing over it using only one mobile manipulator. More importantly, the two mobile manipulators can work in a cooperative manner to pick up and place long sticks. “Since there are two mobile manipulators, the presented system could keep the advantages of having two arms while extending the human body functions.” said Wan, “The results demonstrated the effectiveness of the proposed system, resulting in extending the human body to a large space while keeping the benefits of having two limbs.”



In the future, they will focus on addressing several remaining problems including a) developing an automatic calibration method to match the direction of the human teleoperator’s arms and the manipulators; b) using a joystick with built-in IMU sensor to allow the teleoperator more flexibly control the joystick; c) minimizing the coordination errors between two manipulators; d) providing a feedback interface for teleoperation in a distant and unseen workspace.



The authors of the paper include Yusuke Hirao, Weiwei Wan, Dimitrios Kanoulas, and Kensuke Harada.



The research is funded by the UKRI Future Leaders Fellowship (RoboHike) and the UCL-Osaka University Strategic Partner Fund 2021.



The paper, “Body Extension by Using Two Mobile Manipulators,” was published in the journal Cyborg and Bionic Systems on Feburary 10, 2023, at DOI: https://doi.org/10.34133/cbsystems.0014





Reference

Authors: Yusuke Hirao1, Weiwei Wan1, Dimitrios Kanoulas2, and Kensuke Harada1

Title of original paper: Body Extension by Using Two Mobile Manipulators

Journal: Cyborg and Bionic Systems

DOI: 10.34133/cbsystems.0014



Affiliations:

1Graduate School of Engineering Science, Osaka University, Osaka, Japan.

2Department of Computer Science, University College London, London, UK.
