Goal: Safer bike lanes
UPV researchers analyze the skid resistance of different pavements used in bike lanes in Valencia

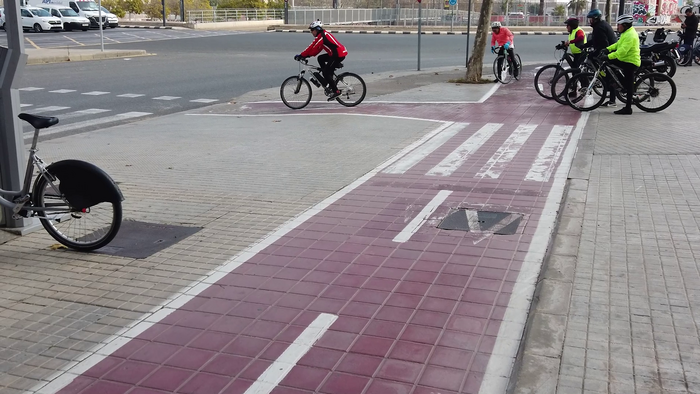

Peer-Reviewed PublicationIMAGE: UPV RESEARCHERS ANALYSE THE SKID RESISTANCE OF DIFFERENT PAVEMENTS USED IN BIKE LANES IN VALENCIA view more
CREDIT: UPV
Among the conclusions, the study notes the risk of painted cobble and smooth painted tile pavements, warning that they "should not be used due to their low and variable skid resistance, as well as the high vibrations they cause to users". The paper has been published in Sustainability journal.
According to the study's authors, the new mobility has increased crashes involving users, mainly bicycles and electric scooters. Many of these crashes are falls in which only the user is involved, i.e., single-bicycle crashes (SBCs).
In 2018, the number of crashes involving personal mobility vehicles in urban areas was less than 200 -199, to be precise- and in 2021, this number rose to 2541. In the case of bicycles, the number of crashes was relatively stable over this period, rising from 5384 to 5712. During 2021, the latest year for which official data is available, 27% of these crashes occurred while riding an electric scooter or bicycle without interaction with other road users.
"Most of the time, these crashes happen because the pavement was slippery. Therefore, studying the pavement's skid resistance is crucial to improving safety on bike lanes. This resistance is one of the characteristics that most affect safety, as it has a decisive influence on accelerating, braking, and keeping the trajectory of a bicycle or e-scooter while turning, without the risk of slipping or skidding," explains David Llopis Castelló, a researcher at the HERG-UPV.
Thus, among the different pavements analysed, the HERG-UPV has found that asphalt, concrete, and rough tile pavements provide adequate skid resistance. In particular, the first two offer the best performance, as they generate less vibrations and, therefore, a more comfortable ride. "On the other hand, painted cobble and smooth painted tile pavements do not meet the requirements, and the probability of falls, collisions, and conflicts between cyclists, e-scooter users, pedestrians, and motorised traffic is higher," says Ana María Pérez Zuriaga, also from the HERG-UPV.
In its study, the HERG-UPV also measured the speed of users of bicycles and electric scooters to analyse their behaviour and the influence of pavements on stopping sight distance. In conclusion, the pavements that provide greater adherence -asphalt, concrete, and rough painted tile pavements- allow a reduction in the required stopping sight distance of up to 7.5%, while smooth painted tile pavements increase this distance by 7% when travelling at 20 km/h (speed limit in bike lanes), with the consequent risk.
Good practice
Based on this research, the study carried out by the Highway Engineering Research Group proposes that asphalt should be used as the paving material on roads shared by motorised vehicles and users of bicycles or electric scooters, as well as on striped/buffered bike lanes. The same applies to protected bike lanes, although concrete pavement may also be used for these. For sidepaths, rough tile pavement is the best option, as the vibrations experienced by users may encourage them to slow down.
In addition, the study proposes the minimum stopping sight distances required to ensure safety not only for cyclists and e-scooter users but also for pedestrians and motorised vehicles.
"The results of this study can serve as a basis for designing a safer micromobility infrastructure. In the choice of pavements for newly constructed bike lanes, it is essential to consider a parameter such as skid resistance, always accompanied by preventive inspection during pavement service life," concludes Alfredo García García, coordinator of the Highway Engineering Research Group at Universitat Politècnica de València.
This study is part of the project "esMicromobility - Road Safety Assessment of Micromobility", reference PID2019-111744RB-I00, funded by MCIN/AEI/10.13039/501100011033.
THIS IS THE CORRECT (EUROPEAN) WAY OF CYCLING IN TRAFFIC
WITH OR WITHOUT A DEDICATED BIKE LANE
UPV researchers analyse the skid resistance of different pavements used in bike lanes in Valencia
CREDIT
UPV
JOURNAL
Sustainability
METHOD OF RESEARCH
Meta-analysis
SUBJECT OF RESEARCH
Not applicable
ARTICLE TITLE
Skid Resistance Analysis of Urban Bike Lane Pavements for Safe Micromobility
