Approaching the terahertz regime
Room temperature quantum magnets switch states trillions of times per second

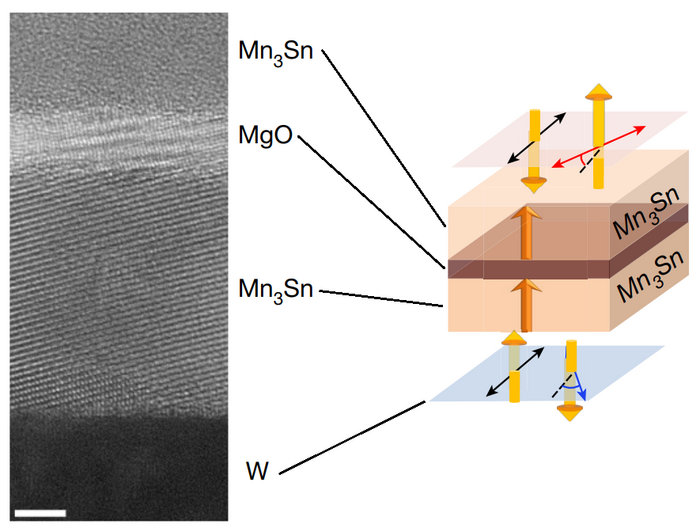

Peer-Reviewed PublicationIMAGE: HIGH-RESOLUTION TRANSMISSION ELECTRON MICROSCOPY IMAGE OF THE ANTIFERROMAGNETIC JUNCTION SHOWING LAYERS OF DIFFERENT MATERIALS (LEFT). DIAGRAM SHOWING THE MATERIALS’ MAGNETIC PROPERTIES (RIGHT). view more
CREDIT: ©2023 NAKATSUJI ET AL.
A class of nonvolatile memory devices, called MRAM, based on quantum magnetic materials, can offer a thousandfold performance beyond current state-of-the-art memory devices. The materials known as antiferromagnets were previously demonstrated to store stable memory states, but were difficult to read from. This new study paves an efficient way for reading the memory states, with the potential to do so incredibly quickly too.
You can probably blink about four times a second. You could say this frequency of blinking is 4 hertz (cycles per second). Imagine trying to blink 1 billion times a second, or at 1 gigahertz, it would be physically impossible for a human. But this is the current order of magnitude in which contemporary high-end digital devices, such as magnetic memory, switch their states as operations are performed. And many people wish to push the boundary a thousand times further, into the regime of a trillion times a second, or terahertz.
The barrier for realizing faster memory devices may be the materials used. Current high-speed MRAM chips, which aren’t yet so common as to appear in your home computer, make use of typical magnetic, or ferromagnetic, materials. These are read using a technique called tunneling magnetoresistance. This requires the magnetic constituents of ferromagnetic material to be lined up in parallel arrangements. However, this arrangement creates a strong magnetic field which limits the speed at which the memory can be read from or written to.
“We’ve made an experimental breakthrough that surpasses this limitation, and it’s thanks to a different kind of material, antiferromagnets”, said Professor Satoru Nakatsuji from the University of Tokyo’s Department of Physics. “Antiferromagnets differ from typical magnets in many ways, but in particular, we can arrange them in ways other than parallel lines. This means we can negate the magnetic field that would result from parallel arrangements. It’s thought that the magnetization of ferromagnets is necessary for tunneling magnetoresistance to read from memory. Strikingly, however, we found it’s also possible for a special class of antiferromagnets without magnetization, and hopefully it can perform at very high speeds.”
Nakatsuji and his team think that switching speeds in the terahertz range is achievable, and that this is possible at room temperature too, whereas previous attempts required much colder temperatures and did not yield such promising results. Though, to improve upon its idea, the team needs to refine its devices, and improving the way it fabricates them is key.
“Although the atomic constituents of our materials are fairly familiar — manganese, magnesium, tin, oxygen, and so on — the way in which we combine them to form a useable memory component is novel and unfamiliar,” said researcher Xianzhe Chen. “We grow crystals in a vacuum, in incredibly fine layers using two processes called molecular beam epitaxy and magnetron sputtering. The higher the vacuum, the purer the samples we can grow. It’s an extremely challenging procedure and if we improve it, we will make our lives easier and produce more effective devices too.”
These antiferromagnetic memory devices exploit a quantum phenomenon known as entanglement, or interaction at a distance. But despite this, this research is not directly related to the increasingly famous field of quantum computing. However, researchers suggest that developments such as this might be useful or even essential to build a bridge between the current paradigm of electronic computing and the emerging field of quantum computers.
###
Journal article: Xianzhe Chen, Tomoya Higo, Katsuhiro Tanaka, Takuya Nomoto, Hanshen Tsai, Hiroshi Idzuchi, Masanobu Shiga, Shoya Sakamoto, Ryoya Ando, Hidetoshi Kosaki, Takumi Matsuo, Daisuke Nishio-Hamane, Ryotaro Arita, Shinji Miwa & Satoru Nakatsuji. “Octupole-driven magnetoresistance in an antiferromagnetic tunnel junction”, Nature. https://doi.org/10.1038/s41586-022-05463-w
Funding:
This work was partially supported by the JST-Mirai Program (no. JPMJMI20A1), the ST-CREST Program (nos. JPMJCR18T3, JST-PRESTO and JPMJPR20L7) and JSPS KAKENHI (nos. 21H04437 and 22H00290).
Useful links:
Department of Physics - https://www.phys.s.u-tokyo.ac.jp/en/
Trans-scale Quantum Science Institute - https://tsqi.phys.s.u-tokyo.ac.jp/tsqi/en/
Research contact:
Professor Satoru Nakatsuji - satoru@g.ecc.u-tokyo.ac.jp
Department of Physics, The University of Tokyo,
7-3-1 Hongo, Bunkyo-ku, Tokyo, 113-8656, Japan
Press contact:
Mr Rohan Mehra
Public Relations Group, The University of Tokyo,
7-3-1 Hongo, Bunkyo-ku, Tokyo, 113-8656, Japan
press-releases.adm@gs.mail.u-tokyo.ac.jp
About The University of Tokyo
The University of Tokyo is Japan's leading university and one of the world's top research universities. The vast research output of some 6,000 researchers is published in the world's top journals across the arts and sciences. Our vibrant student body of around 15,000 undergraduate and 15,000 graduate students includes over 4,000 international students. Find out more at www.u-tokyo.ac.jp/en/ or follow us on Twitter at @UTokyo_News_en.
JOURNAL
Nature
METHOD OF RESEARCH
Experimental study
SUBJECT OF RESEARCH
Not applicable
ARTICLE TITLE
Octupole-driven magnetoresistance in an antiferromagnetic tunnel junction
ARTICLE PUBLICATION DATE
18-Jan-2023
