Ultralight ‘organ-pipe’ structure absorbs noise with high structural strength
International Journal of Extreme Manufacturing
image:

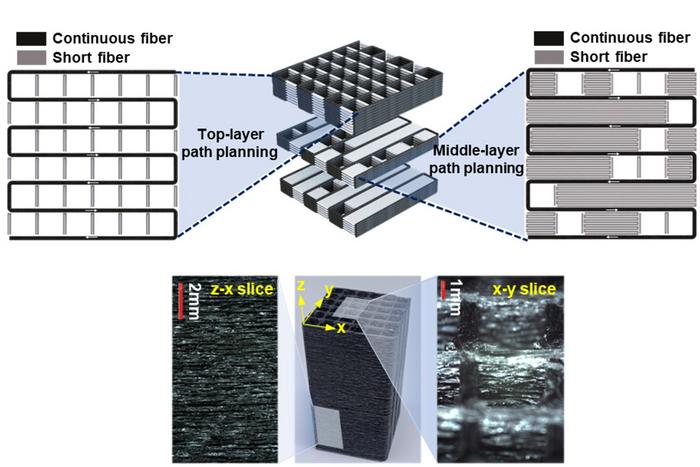

Illustration of the dual-nozzle robotic printing strategy for a continuous-fiber and short-fiber composite acoustic metastructure, showing layer-by-layer path planning and cross-sectional microstructure slices (x–y and z–x) that verify the programmed fiber reinforcement for integrated load-bearing and broadband sound absorption.
view moreCredit: By Yilong Yang, Yafeng Liu, Shuangshuang Miao, Yongdong Pan, Wei Zhai, Xiaoying Zhuang* and Yabin Jin*
The aerospace and manufacturing industries face a persistent physical contradiction: materials that block noise are typically too weak to support heavy loads, and strong structural materials lack the porosity needed to absorb sound.
Publishing in the International Journal of Extreme Manufacturing, researchers have merged acoustic engineering with robotic 3D printing to create a carbon-fiber composite that swallows sound waves while retaining the strength of industrial load-bearing panels.
The design relies on an engineered grid of Fabry-Pérot channels. Think of these channels as a densely packed bundle of 36 miniature organ pipes, each cut to a different depth. When sound waves hit the structure, each specific pipe traps and dissipates a different frequency of acoustic energy.
To make this grid physically robust, the engineers used a specialized six-axis robotic arm equipped with a dual-nozzle printer. One nozzle extrudes standard short-fiber composite to build the intricate channel walls. The other nozzle lays down unbroken threads of continuous carbon fiber along the structure's critical stress paths.
This continuous thread acts much like steel rebar in concrete, shifting the physical load away from the hollow channels and preventing cracks from tearing through the structure during sheer or compression stress.
The resulting metastructure, measuring just 56.8 millimetres thick, achieves an average sound absorption coefficient of over 0.9 across a frequency range of 1,500 to 5,500 hertz. In a factory-floor context, a panel roughly the thickness of a hardback book can absorb 90 percent of the mid-to-high frequency roar generated by heavy machinery or advanced transport systems.
Mechanical testing demonstrated that the continuous carbon fiber reinforcement completely suppressed the brittle shattering seen in standard short-fiber prints, yielding massive gains in bending, compression, and shear strength before failure. Interestingly, the microscopic imperfections and rough layer gaps inherent to the fused deposition modeling process actually improved the acoustic performance by providing more friction to deaden the incoming sound waves.
While this represents a significant advance in multifunctional materials, the current iteration remains a small-scale laboratory prototype. Integrating these composites directly into the walls of large equipment or passenger jet fairings requires scaling up the manufacturing process.
Moving forward, the research team will focus on optimizing the robotic control systems and automating the continuous fiber path planning to ensure structural reliability when printing massive and geometrically complex parts.
