Mysterious Neptune dark spot detected from Earth for the first time


Peer-Reviewed Publication

ESO

Dark spot on Neptune observed with MUSE at ESO’s Very Large Telescope

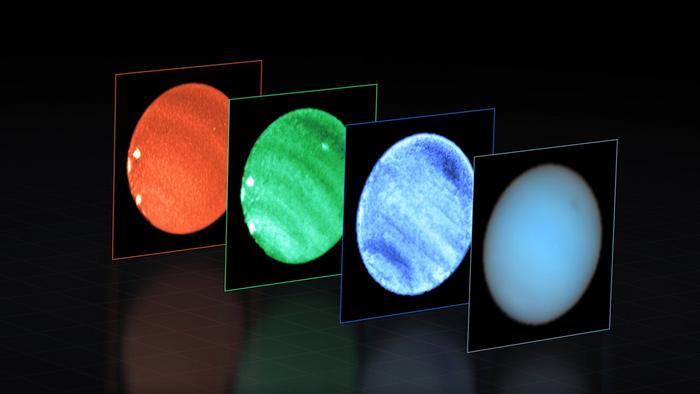

IMAGE: THIS IMAGE SHOWS NEPTUNE OBSERVED WITH THE MUSE INSTRUMENT AT ESO’S VERY LARGE TELESCOPE (VLT). AT EACH PIXEL WITHIN NEPTUNE, MUSE SPLITS THE INCOMING LIGHT INTO ITS CONSTITUENT COLOURS OR WAVELENGTHS. THIS IS SIMILAR TO OBTAINING IMAGES AT THOUSANDS OF DIFFERENT WAVELENGTHS ALL AT ONCE, WHICH PROVIDES A WEALTH OF VALUABLE INFORMATION TO ASTRONOMERS. THE IMAGE TO THE RIGHT COMBINES ALL COLOURS CAPTURED BY MUSE INTO A “NATURAL” VIEW OF NEPTUNE, WHERE A DARK SPOT CAN BE SEEN TO THE UPPER-RIGHT. THEN WE SEE IMAGES AT SPECIFIC WAVELENGTHS: 551 NANOMETRES (BLUE), 831 NM (GREEN), AND 848 NM (RED); NOTE THAT THE COLOURS ARE ONLY INDICATIVE, FOR DISPLAY PURPOSES. THE DARK SPOT IS MOST PROMINENT AT SHORTER (BLUER) WAVELENGTHS. RIGHT NEXT TO THIS DARK SPOT MUSE ALSO CAPTURED A SMALL BRIGHT ONE, SEEN HERE ONLY IN THE MIDDLE IMAGE AT 831 NM AND LOCATED DEEP IN THE ATMOSPHERE. THIS TYPE OF DEEP BRIGHT CLOUD HAD NEVER BEEN IDENTIFIED BEFORE ON THE PLANET. THE IMAGES ALSO SHOW SEVERAL OTHER SHALLOWER BRIGHT SPOTS TOWARDS THE BOTTOM-LEFT EDGE OF NEPTUNE, SEEN AT LONG WAVELENGTHS. IMAGING NEPTUNE’S DARK SPOT FROM THE GROUND WAS ONLY POSSIBLE THANKS TO THE VLT’S ADAPTIVE OPTICS FACILITY, WHICH CORRECTS THE BLUR CAUSED BY ATMOSPHERIC TURBULENCE AND ALLOWS MUSE TO OBTAIN CRYSTAL CLEAR IMAGES. TO BETTER HIGHLIGHT THE SUBTLE DARK AND BRIGHT FEATURES ON THE PLANET, THE ASTRONOMERS CAREFULLY PROCESSED THE MUSE DATA, OBTAINING WHAT YOU SEE HERE. view more

CREDIT: ESO/P. IRWIN ET AL.




Using ESO’s Very Large Telescope (VLT), astronomers have observed a large dark spot in Neptune’s atmosphere, with an unexpected smaller bright spot adjacent to it. This is the first time a dark spot on the planet has ever been observed with a telescope on Earth. These occasional features in the blue background of Neptune’s atmosphere are a mystery to astronomers, and the new results provide further clues as to their nature and origin.

Large spots are common features in the atmospheres of giant planets, the most famous being Jupiter’s Great Red Spot. On Neptune, a dark spot was first discovered by NASA’s Voyager 2 in 1989, before disappearing a few years later. “Since the first discovery of a dark spot, I’ve always wondered what these short-lived and elusive dark features are,” says Patrick Irwin, Professor at the University of Oxford in the UK and lead investigator of the study published today in Nature Astronomy.

Irwin and his team used data from ESO’s VLT to rule out the possibility that dark spots are caused by a ‘clearing’ in the clouds. The new observations indicate instead that dark spots are likely the result of air particles darkening in a layer below the main visible haze layer, as ices and hazes mix in Neptune’s atmosphere.

Coming to this conclusion was no easy feat because dark spots are not permanent features of Neptune’s atmosphere and astronomers had never before been able to study them in sufficient detail. The opportunity came after the NASA/ESA Hubble Space Telescope discovered several dark spots in Neptune's atmosphere, including one in the planet’s northern hemisphere first noticed in 2018. Irwin and his team immediately got to work studying it from the ground — with an instrument that is ideally suited to these challenging observations.

Using the VLT’s Multi Unit Spectroscopic Explorer (MUSE), the researchers were able to split reflected sunlight from Neptune and its spot into its component colours, or wavelengths, and obtain a 3D spectrum [1]. This meant they could study the spot in more detail than was possible before. “I’m absolutely thrilled to have been able to not only make the first detection of a dark spot from the ground, but also record for the very first time a reflection spectrum of such a feature,” says Irwin.

Since different wavelengths probe different depths in Neptune’s atmosphere, having a spectrum enabled astronomers to better determine the height at which the dark spot sits in the planet's atmosphere. The spectrum also provided information on the chemical composition of the different layers of the atmosphere, which gave the team clues as to why the spot appeared dark.

The observations also offered up a surprise result. “In the process we discovered a rare deep bright cloud type that had never been identified before, even from space,” says study co-author Michael Wong, a researcher at the University of California, Berkeley, USA. This rare cloud type appeared as a bright spot right beside the larger main dark spot, the VLT data showing that the new ‘deep bright cloud’ was at the same level in the atmosphere as the main dark spot. This means it is a completely new type of feature compared to the small ‘companion’ clouds of high-altitude methane ice that have been previously observed.

With the help of ESO’s VLT, it is now possible for astronomers to study features like these spots from Earth. “This is an astounding increase in humanity’s ability to observe the cosmos. At first, we could only detect these spots by sending a spacecraft there, like Voyager. Then we gained the ability to make them out remotely with Hubble. Finally, technology has advanced to enable this from the ground,” concludes Wong, before adding, jokingly: "This could put me out of work as a Hubble observer!

Notes

[1] MUSE is a 3D spectrograph that allows astronomers to observe the entirety of an astronomical object, like Neptune, in one go. At each pixel, the instrument measures the intensity of light as a function of its colour or wavelength. The resulting data form a 3D set in which each pixel of the image has a full spectrum of light. In total, MUSE measures over 3500 colours. The instrument is designed to take advantage of adaptive optics, which corrects for the turbulence in the Earth’s atmosphere, resulting in sharper images than otherwise possible. Without this combination of features, studying a Neptune dark spot from the ground would not have been possible.

More information

This research was presented in a paper titled “Cloud structure of dark spots and storms in Neptune’s atmosphere” to appear in Nature Astronomy (doi: 10.1038/s41550-023-02047-0).

The team is composed of Patrick G. J. Irwin (University of Oxford, UK [Oxford]), Jack Dobinson (Oxford), Arjuna James (Oxford), Michael H. Wong (University of California, USA [Berkeley]), Leigh N. Fletcher (University of Leicester, UK [Leicester]), Michael T. Roman (Leicester), Nicholas A. Teanby (University of Bristol, UK), Daniel Toledo (Instituto Nacional de Técnica Aeroespacial, Spain), Glenn S. Orton (Jet Propulsion Laboratory, USA), Santiago Pérez-Hoyos (University of the Basque Country, Spain [UPV/EHU]), Agustin Sánchez Lavega (UPV/EHU), Lawrence Sromovsky (University of Wisconsin, USA), Amy Simon (Solar System Exploration Division, NASA Goddard Space Flight Center, USA), Raúl Morales-Juberias (New Mexico Institute of Technology, USA), Imke de Pater (Berkeley), and Statia L. Cook (Columbia University, USA).

The European Southern Observatory (ESO) enables scientists worldwide to discover the secrets of the Universe for the benefit of all. We design, build and operate world-class observatories on the ground — which astronomers use to tackle exciting questions and spread the fascination of astronomy — and promote international collaboration for astronomy. Established as an intergovernmental organisation in 1962, today ESO is supported by 16 Member States (Austria, Belgium, the Czech Republic, Denmark, France, Finland, Germany, Ireland, Italy, the Netherlands, Poland, Portugal, Spain, Sweden, Switzerland and the United Kingdom), along with the host state of Chile and with Australia as a Strategic Partner. ESO’s headquarters and its visitor centre and planetarium, the ESO Supernova, are located close to Munich in Germany, while the Chilean Atacama Desert, a marvellous place with unique conditions to observe the sky, hosts our telescopes. ESO operates three observing sites: La Silla, Paranal and Chajnantor. At Paranal, ESO operates the Very Large Telescope and its Very Large Telescope Interferometer, as well as survey telescopes such as VISTA. Also at Paranal ESO will host and operate the Cherenkov Telescope Array South, the world’s largest and most sensitive gamma-ray observatory. Together with international partners, ESO operates ALMA on Chajnantor, a facility that observes the skies in the millimetre and submillimetre range. At Cerro Armazones, near Paranal, we are building “the world’s biggest eye on the sky” — ESO’s Extremely Large Telescope. From our offices in Santiago, Chile we support our operations in the country and engage with Chilean partners and society.
