Sweater-wrapped robots can feel and react to human touch

Carnegie Mellon University researchers create fabric and sensing system to measure contact and pressure

Reports and Proceedings

CARNEGIE MELLON UNIVERSITY

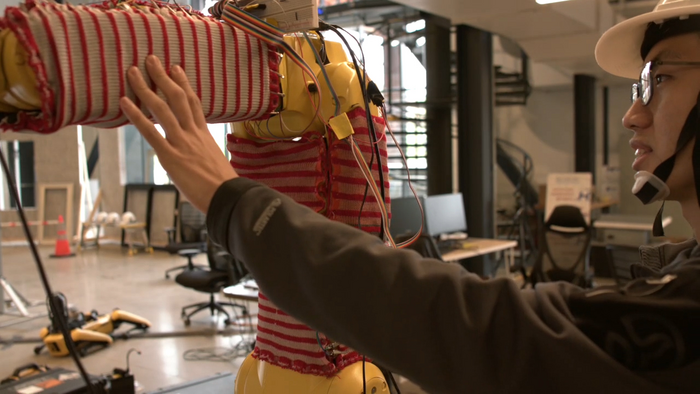

IMAGE: ROBOTSWEATER, DEVELOPED BY A RESEARCH TEAM IN THE ROBOTICS INSTITUTE AND SHOWN HERE ON A ROBOTIC ARM, IS A MACHINE-KNITTED TEXTILE "SKIN" THAT CAN SENSE CONTACT AND PRESSURE. view more

CREDIT: CARNEGIE MELLON UNIVERSITY

The qualities that make a knitted sweater comfortable and easy to wear are the same things that might allow robots to better interact with humans.

RobotSweater, developed by a research team from Carnegie Mellon University's Robotics Institute, is a machine-knitted textile "skin" that can sense contact and pressure.

"We can use that to make the robot smarter during its interaction with humans," said Changliu Liu, an assistant professor of robotics in the School of Computer Science.

Just as knitters can take any kind of yarn and turn it into a sock, hat or sweater of any size or shape, the knitted RobotSweater fabric can be customized to fit uneven three-dimensional surfaces.

"Knitting machines can pattern yarn into shapes that are non-flat, that can be curved or lumpy," said James McCann, an SCS assistant professor whose research has focused on textile fabrication in recent years. "That made us think maybe we could make sensors that fit over curved or lumpy robots."

Once knitted, the fabric can be used to help the robot "feel" when a human touches it, particularly in an industrial setting where safety is paramount. Current solutions for detecting human-robot interaction in industry look like shields and use very rigid materials that Liu notes can't cover the robot's entire body because some parts need to deform.

"With RobotSweater, the robot's whole body can be covered, so it can detect any possible collisions," said Liu, whose research focuses on industrial applications of robotics.

RobotSweater's knitted fabric consists of two layers of conductive yarn made with metallic fibers to conduct electricity. Sandwiched between the two is a net-like, lace-patterned layer. When pressure is applied to the fabric — say, from someone touching it — the conductive yarn closes a circuit and is read by the sensors.

"The force pushes together the rows and columns to close the connection," said Wenzhen Yuan, an SCS assistant professor and director of the RoboTouch lab. "If there's a force through the conductive stripes, the layers would contact each other through the holes."

Apart from how to design the knitted layers, including dozens if not hundreds of samples and tests, the team faced another challenge in connecting the wiring and electronics components to the soft textile.

"There was a lot of fiddly physical prototyping and adjustment," McCann said. "The students working on this managed to go from something that seemed promising to something that actually worked."

What worked was wrapping the wires around snaps attached to the ends of each stripe in the knitted fabric. Snaps are a cost-effective and efficient solution, such that even hobbyists creating textiles with electronic elements, known as e-textiles, could use them, McCann said.

"You need a way of attaching these things together that is strong, so it can deal with stretching, but isn't going to destroy the yarn," he said, adding that the team also discussed using flexible circuit boards.

Once fitted to the robot's body, RobotSweater can sense the distribution, shape and force of the contact. It's also more accurate and effective than the visual sensors most robots rely on now.

"The robot will move in the way that the human pushes it, or can respond to human social gestures," Yuan said.

In their research, the team demonstrated that pushing on a companion robot outfitted in RobotSweater told it which way to move or what direction to turn its head. When used on a robot arm, RobotSweater allowed a push from a person's hand to guide the arm's movement, while grabbing the arm told it to open or close its gripper.

In future research, the team wants to explore how to program reactions from the swipe or pinching motions used on a touchscreen.

The team — including SCS Ph.D. students Zilin Si and Tianhong Catherine Yu, and visiting undergraduate student Katrene Morozov from the University of California, Santa Barbara — will present the RobotSweater research paper next week at the 2023 IEEE International Conference on Robotics and Automation (ICRA).

Begun by the three faculty members in a conversation over lunch one day, the collaboration and specialties among the team of researchers helped the RobotSweater come to life, McCann said.

"We had a person thinking about fabrication, a person thinking about the robotics integration, a person thinking about sensing, and a person thinking about planning and control," he said. "It's really nice to have this project where we have the full stack of people to cover each concern."
