Speeding up extreme fast charging capability in lithium-ion batteries
Researchers show that inherent lithium ions in bioderived borate polymer enhance 'extreme fast charging' capability in graphite anodes

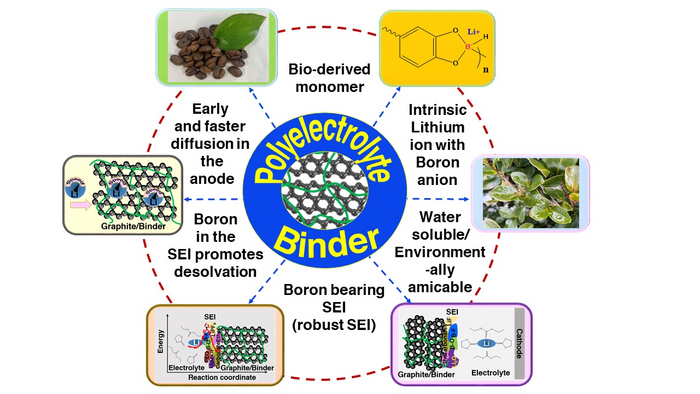

Peer-Reviewed PublicationIMAGE: IN AN EFFORT TO IMPROVE PERFORMANCE IN LITHIUM-ION BATTERIES, A GROUP OF RESEARCHERS FROM JAPAN ADVANCED INSTITUTE OF SCIENCE AND TECHNOLOGY SYNTHESIZED A LITHIUM BORATE-TYPE AQUEOUS POLYELECTROLYTE BINDER FOR GRAPHITE ANODES. THEIR NEW BINDER HELPED IMPROVE LI-ION DIFFUSION AND LOWER IMPEDANCE COMPARED TO CONVENTIONAL BATTERIES. view more
CREDIT: NORIYOSHI MATSUMI FROM JAIST.
Ishikawa, Japan -- Current society is transitioning en masse from fossil fuels to renewable resources and electric batteries. Despite the urgency to switch to greener methods, core challenges related to efficiency and sustainability pose a hurdle to overcome. For instance, the mass market adoption of lithium-ion (Li-ion) batteries for use in electric vehicles is being hindered by their slow charging speeds. “Extreme” fast charging (wherein 80% of the battery is charged within 10 min), high energy density, and cycle life are the “holy grail” of features that the automobile industry seeks out in batteries.
In order to enable the fast-charging ability in batteries, researchers have long attempted to enhance the mass transfer of electrolytes and charge transfer in electrodes, with extensive research carried out on the former compared to the latter. Now, a study by a team of researchers, led by Professor Noriyoshi Matsumi from Japan Advanced Institute of Science and Technology (JAIST), showcases a new approach to facilitate fast charging using a binder material which promotes Li-ion intercalation of active material. The binder material leads to improved diffusion of desolvated Li ions across the solid electrolyte interface (SEI) and within the anode material and yields high conductivity, low impedance, and good stability.
The team comprised Former Senior Lecturer Rajashekar Badam, Postdoctoral Research Fellow Anusha Pradhan, Former Graduate Student Ryoya Miyairi, and Doctoral Course Student Noriyuki Takamori from JAIST. Their findings have been published in the journal ACS Materials Letters.
“Our current strategy of using a bio-derived lithium borate polymer as aqueous polyelectrolyte binder to enhance charge transfer within electrodes such as graphite anodes exhibits fast charging capability,” state corresponding authors Profs. Matsumi and Badam of JAIST.
While most research on batteries is focused on the design of active materials and improved mass transfer of electrolytes, the current study provides a different approach via the design of specific binder material which promotes lithium-ion intercalation of the active material. “The binder material includes highly dissociable lithium borate, which improves lithium-ion diffusion in the anode matrices. Further, this binder can form an organoboron SEI, which shows very low interfacial resistance when compared with ordinary battery cells,” explains Prof. Matsumi.
The role of boron compounds (such as the tetracordinate boron in the binder and the boron-rich SEI) is to aid in the desolvation of Li+ ions by decreasing the activation energy of desolvation of Li+ from the solvent sheath at the SEI. Also, with high diffusion and low impedance, the overpotential related to charge transfer at the interface is reduced. “This is one of the important determining factors for extreme fast charging,” explains Dr. Anusha Pradhan of JAIST, who is the first author of the paper.
Generally, when charging surpasses rate of intercalation, Li plating occurs on graphite electrodes. It is an undesired process leading to reduced battery life and limiting fast charge capability. In this study, the improved diffusion of ions across the SEI and within the electrodes limits the concentration polarization of Li+ ions - leading to the absence of plating on graphite.
In their study, not only do the researchers present a novel strategy for extremely high-rate chargeable batteries and reduced interfacial resistance, but they also used a biopolymer derived from caffeic acid. A plant-based organic compound, caffeic acid is a sustainable and environmentally safe source of material. Thus, while the market for these batteries grows tremendously, the use of bio-based resources in these batteries will also reduce carbon dioxide emissions.
Highlighting the key abilities of the structure used in this study, Prof. Matsumi adds, “In future studies, our binder can also be combined with high-rate chargeable active materials to enable further synergistic effect in enhancing performance.”
With increasing research into battery performance, one can soon look forward to greener options in the way we use energy, especially in the transportation sector. “Through the high-rate chargeable battery technology, people will enjoy electric vehicles and convenient mobile devices. As the use of renewable resources will maintain availability of products for long, irrespective of availability of fossil resources and influences by high social situations,” concludes Prof. Matsumi.
###
Title of original paper: | Extreme Fast Charging Capability in Graphite Anode via a Lithium Borate Type Biobased Polymer as Aqueous Polyelectrolyte Binder |
Author: | Anusha Pradhan, Rajashekar Badam*, Ryoya Miyairi, Noriyuki Takamori and Noriyoshi Matsumi* |
Journal: | ACS Materials Letters |
DOI: | 10.1021/acsmaterialslett.2c00999 |
About Japan Advanced Institute of Science and Technology, Japan
Founded in 1990 in Ishikawa prefecture, the Japan Advanced Institute of Science and Technology (JAIST) was the first independent national graduate school in Japan. Now, after 30 years of steady progress, JAIST has become one of Japan’s top-ranking universities. JAIST counts with multiple satellite campuses and strives to foster capable leaders with a state-of-the-art education system where diversity is key; about 40% of its alumni are international students. The university has a unique style of graduate education based on a carefully designed coursework-oriented curriculum to ensure that its students have a solid foundation on which to carry out cutting-edge research. JAIST also works closely both with local and overseas communities by promoting industry–academia collaborative research.
About Professor Noriyoshi Matsumi from Japan Advanced Institute of Science and Technology
Noriyoshi Matsumi is a Professor in the School of Materials Science, Japan Advanced Institute of Science and Technology (JAIST). He is also the Dean of the School of Transdisciplinary Science, JAIST. He obtained his doctoral degree in engineering from Kyoto University in 2000, and worked as an assistant professor at Tokyo University of Agriculture and Technology, and associate professor at Nagoya University in 2006. From 2010, he has been working at JAIST.
His research interests include the creation of energy related materials, lithium-ion secondary batteries, metal-air batteries, electrocatalysis (oxygen reduction, photo-electrochemical water splitting), solid polymer electrolytes, ionic liquids, and organoboron compounds/materials. He is also the Editor-in-Chief of Polymer Bulletin (Springer).
Funding information
This work was supported by the Strategic Innovation Promotion Program (SIP) Technologies for Smart Bio-Industry and Agriculture, Japan.
JOURNAL
ACS Materials Letters
ARTICLE TITLE
Extreme Fast Charging Capability in Graphite Anode via a Lithium Borate Type Biobased Polymer as Aqueous Polyelectrolyte Binder
