Enhancing the safety and efficacy of drone flights in polar regions


Scientists devise onboard particle counters that enable real-time detection of icing conditions by drones


Peer-Reviewed Publication

RESEARCH ORGANIZATION OF INFORMATION AND SYSTEMS

Enhancing drone performance in icy conditions with an onboard low-cost particle counter

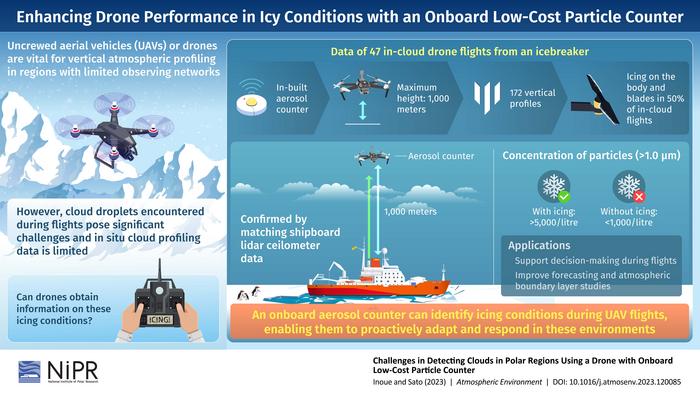

IMAGE:

AN ONBOARD AEROSOL COUNTER CAN IDENTIFY ICING CONDITIONS DURING DRONE FLIGHTS, ENABLING THEM TO ADAPT AND RESPOND IN THESE EXTREME ENVIRONMENTS

view more

CREDIT: @ JUN INOUE FROM NATIONAL INSTITUTE OF POLAR RESEARCH, JAPAN




Collecting accurate weather data in remote and challenging environments like the polar regions and mountains can be extremely difficult. These areas often lack the infrastructure and resources needed for traditional weather stations, and the harsh weather conditions can make it dangerous for humans to access and maintain these stations.

Drones can navigate these challenging terrains, gather data, and transmit it to researchers, making them an indispensable tool for addressing these data gaps. Unfortunately, in-cloud flights still pose a challenge, with icing from supercooled cloud droplets that can damage vital drone components, rendering them inoperable.

To solve this problem, Drs. Jun Inoue and Kazutoshi Sato from the National Institute of Polar Research, Japan, came together to devise a creative solution: they integrated onboard aerosol counters into a group of drones used during the Japanese Antarctic Research Expedition of 2022/2023. The study was made available online on 16 September 2023 and is set to be published in Volume 314 of Atmospheric Environment on 1 December 2023.The scientists used the aerosol counters, which are typically used to measure the concentration of particles in the air, to detect the presence of clouds during drone flights.

"Under usual conditions in our expedition, we typically observe concentrations of fewer than a thousand particles per liter," explained Dr. Jun Inoue. "However, when we encounter icing conditions, we see concentrations of 5,000 particles per liter or even higher." This change enables the drones to promptly detect and respond to hazardous conditions in real-time.

During meteorological vertical profiling, which involves the information of atmospheric conditions at different altitudes, the drones do not need to travel far horizontally, making it easier to decide when to descend in icing conditions. The aerosol counter plays a pivotal role in this scenario, as it empowers drone operators to make informed decisions promptly.

To further confirm the reliability of this method, the scientists compared the counters’ observations with data collected from a shipboard lidar ceilometer. The ceilometer provides critical information about cloud properties, such as their height and whether they consist of water or ice. The authors examined the attenuated backscatter coefficient, which indicates how light bounces off the clouds, and were able to establish a clear connection between the increased particle counts detected by the aerosol counter based on 47 in-cloud flights and the presence of supercooled liquid clouds.

The counters successfully detect icing conditions among half of the in-cloud flights, which reached heights of approximately 1,000 meters above the sea level. This information helped the drones avoid flying through dangerous icing conditions.

Drones can be a valuable tool for studying the atmosphere, especially in places like the polar regions, and these findings can improve our understanding of clouds and weather. “With continued innovation and collaboration, drones can revolutionize meteorological research, ultimately benefiting our comprehension of clouds, weather, and their broader implications," Dr. Inoue concludes.



###
