HKU Engineering team new microfluidic technique to measure elastic modulus of microfiber for wide biomedical engineering applications
IMAGE:

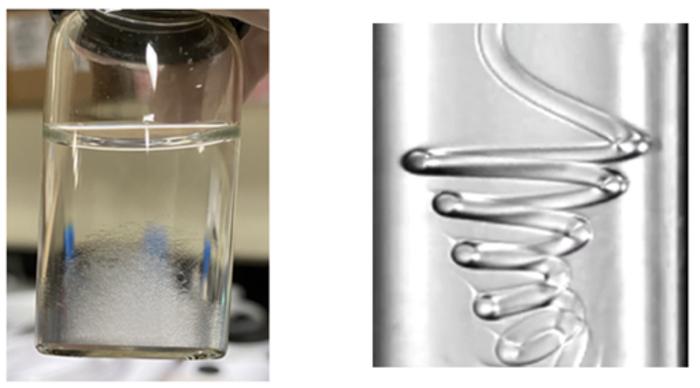

LEFT: APPROXIMATELY 5,000 MICROFIBERS ARE COLLECTED IN THE CONTAINER.
RIGHT: COILING OF A NONUNIFORM MICROFIBER WITH AXIALLY VARIED ELASTIC MODULUS. AS THE FIBER COILS IN THE MICROFLUIDIC DEVICE, IT FORMS A SPIRAL WITH A VARYING COILING RADIUS THAT REFLECTS THE LOCAL ELASTIC MODULUS. THE HIGHER THE LOCAL ELASTIC MODULUS, THE LARGER THE COILING RADIUS OF THAT SEGMENT. (PICTURES ARE REPRODUCED UNDER THE TERMS OF THE CC-BY LICENSE.) [PROC. NATL. ACAD. SCI. U.S.A. 121, E2303679121, 2024]
CREDIT: THE UNIVERSITY OF HONG KONG
The new microfluidic technique was developed by Professor Anderson H. C. Shum and Dr Yuan Liu from the Department of Mechanical Engineering at HKU, in collaboration with Professor Howard A. Stone and Dr Janine K. Nunes, scientists from Princeton University, and Dr Jack H. Y. Lo from King Fahd University of Petroleum and Minerals.
The findings have been published in the prestigious scientific journal Proceedings of the National Academy of Sciences (PNAS) with the title “High-throughput measurement of elastic moduli of microfibers by rope coiling”.
The new approach eliminates the need for manual sample handling by utilising a quantitative correlation between elastic moduli and coiling radius. This enables the measurement of 3,300 fibres per hour, marking a substantial improvement over existing methods and providing a thousandfold increase compared to using a typical tensile tester. The breakthrough significantly reduces the time-consuming and skill-intensive process of sample loading and unloading, which is particularly beneficial for tiny, fragile samples, such as filamentous bacteria, actin filaments, DNA, carbon nanotubes, and functional microfibers.
"Our approach not only simplifies the testing process but also integrates the manufacturing and testing phases," said Professor Shum.
"With the inline measurement capabilities, which couple the ‘making of microfibers’ and the ’measurement of elastic modulus’ on the same process line, we can now measure the elastic modulus of every fibre immediately after production. This enables the immediate identification and correction of defects by adjusting process variables, such as UV intensity, in real-time. For instance, to maintain a constant modulus, a decrease in coiling radius downstream would trigger an increase in UV intensity upstream, serving as feedback mechanism to correct production faults. On the other hand, elastic moduli can also be controlled by the intensities of UV light, ensuring consistent product quality.” Professor Shum added.
Additionally, the method is non-destructive, eliminating the need to bond fibre ends to fixtures, as required in conventional tensile tests. This feature is especially advantageous when dealing with fibres that exhibit nonuniform elastic moduli, which traditionally require segmentation into multiple parts for individual assessment.
Looking forward, the team is optimistic about adapting this method for even smaller fibres, including those with submicron diameters such as DNA and actin filaments.
"Adjusting the microfluidic setup and fluid dynamics to accommodate smaller fibres present some technical challenges, but it is definitely feasible," said Dr Liu.
This work received support from the Research Impact Fund by the Research Grants Council of Hong Kong, with additional funding from the Health@InnoHK programme of the Innovation and Technology Commission of the Hong Kong SAR government, and the Croucher Senior Research Fellowship from Croucher Foundation.
For more details about the study, please visit the HKU Mechanical Engineering website at: https://www.mech.hku.hk/post/high-throughput-measurement-of-elastic-moduli-of-microfibers-by-rope-coiling.
Link to the paper: https://www.pnas.org/doi/10.1073/pnas.2303679121
Media Enquiries:
Faculty of Engineering, HKU
Ms Christina Chung (Tel: 3910 3324; Email: chungmc@hku.hk) or
Ms Charis Lai (Tel: 3917 1924; Email: chariskc@hku.hk)
METHOD OF RESEARCH
Experimental study
SUBJECT OF RESEARCH
Not applicable
ARTICLE TITLE
High-throughput measurement of elastic moduli of microfibers by rope coiling
