Bio-inspired membrane breaks key battery barrier, paving the way for large-scale energy storage
image:

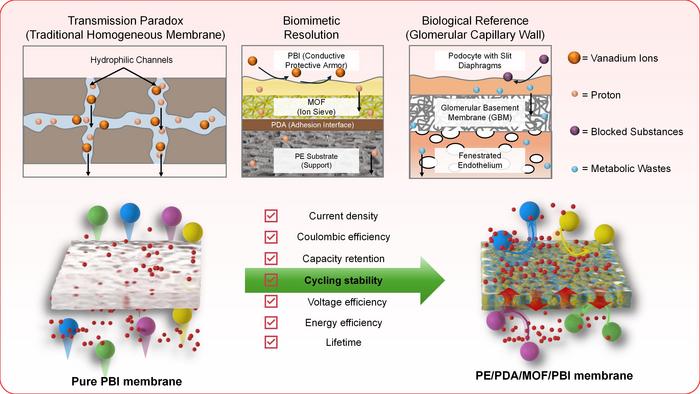

An intelligent ion goalkeeper: a synergistically enhanced ion exchange membrane via multilayer interfacial assembly for vanadium flow batteries
view moreCredit: Xiao Wei and Zhang Denghua from Liaoning Petrochemical University.
Vanadium flow batteries are regarded as one of the most promising technologies for large-scale, long-duration energy storage due to their intrinsic safety, independently adjustable power and capacity, and long cycle life. The core of the battery lies in the ion exchange membrane, which must efficiently conduct protons to complete the circuit while strictly blocking the crossover penetration of vanadium ions in different valence states, acting like a microscopic gatekeeper that allows only certain ions to pass while blocking others. However, the commercialization process has long been constrained by the inherent "transport paradox" of membrane materials: the challenging inverse relationship between proton conductivity and vanadium ion blocking capability. Market-dominant perfluorosulfonic acid membranes (e.g., Nafion), despite their excellent proton conduction networks, fail to effectively distinguish protons from the larger hydrated vanadium ions due to the size of their hydrated ion channels. This leads to severe crossover contamination of active materials and capacity decay. Existing improvement strategies often face trade-offs: either sacrificing conductivity to enhance blocking capability or encountering deficiencies in cost, stability, and scalability. None of these approaches fundamentally resolve this contradiction.
The Solution
Researchers have reported a bio-inspired composite membrane solution inspired by the glomerular filtration barrier. This approach is based on stacking several ultrathin functional layers on a porous polyethylene support. Each layer performs a different role, one improves adhesion, another selectively filters ions, and a third enhances structural stability.. Studies indicate that a critical bifunctional acid-base interface forms between the MOF and PBI, which not only densifies the membrane structure but also optimizes proton transport pathways. The resulting PE/PDA/MOF/PBI composite membrane successfully decouples the performance trade-off, simultaneously achieving high proton conductivity, exceptionally low vanadium ion permeability, and outstanding mechanical-chemical stability. Its ion selectivity far surpasses that of the commercial N212 membrane. In battery testing, the membrane demonstrates high energy efficiency, ultra-long self-discharge time, and stable long-term cycling performance, validating this bio-inspired hierarchical design strategy as an effective approach to resolving the "transport paradox."
The Future
Future research is dedicated to optimizing and reducing the overall manufacturing costs to accelerate the industrialization of flow batteries.
The successful implementation of this work signifies a paradigm shift in flow battery membrane design—from traditional material blending to bio-inspired micro-functional device engineering. Future research may advance in the following directions: first, developing adaptive, stimuli-responsive interfaces, such as incorporating "molecular gates" into MOFs to dynamically regulate ion flux in response to the battery's state of charge, mimicking biological homeostatic regulation; second, deeply exploring the sub-nanoscale transport mechanisms within interfacial densification regions, combining in situ characterization and multiscale simulations to establish predictive frameworks for interface optimization; third, promoting scalable and environmentally friendly fabrication processes based on low-cost, chemically resistant substrates like polyethylene. By integrating high-throughput computational screening with modular assembly techniques, the development of next-generation high-precision bio-inspired separation membranes is expected to accelerate, thereby advancing the global deployment of long-duration energy storage systems.
The Impact
This work validates that the biomimetic, multifunctional design strategy is an efficient approach to developing next-generation membranes, paving the way for more efficient, durable, and economically viable vanadium flow batteries.
The research has been recently published in the online edition of Materials Futures, a prominent international journal in the field of interdisciplinary materials science research.
Reference: Wei Xiao, Yuanyuan Zhang, Zhaohan Meng, Kai Zhang, Yidan Sun, Yue Yang, Hebin Wang, Jingze Hu, Xuan Yuan, Xihao Zhang, Jiaqi Liu, Denghua Zhang. An intelligent ion goalkeeper: a synergistically enhanced ion exchange membrane via multilayer interfacial assembly for vanadium flow batteries[J]. Materials Futures, 2026, 5(2): 025103. DOI: 10.1088/2752-5724/ae49a5
Journal
Materials Futures
Article Title
An intelligent ion goalkeeper: a synergistically enhanced ion exchange membrane via multilayer interfacial assembly for vanadium flow batteries
Article Publication Date
12-Mar-2026
