New laser-based instrument designed to boost hydrogen research
Advance could lead to more environmentally friendly rocket fuels

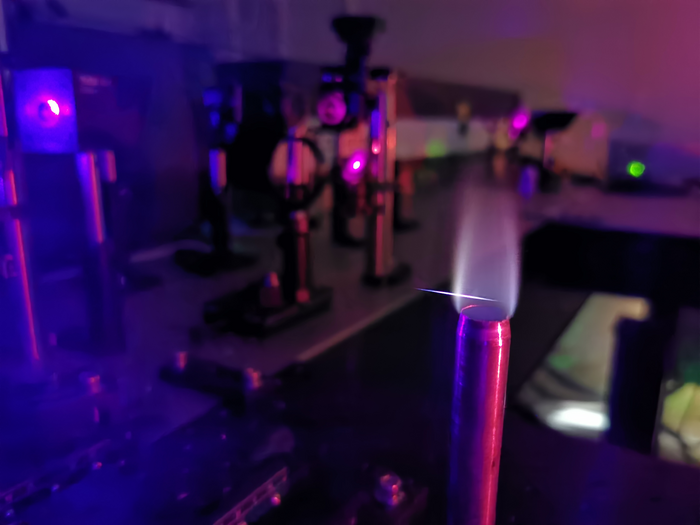

Peer-Reviewed PublicationIMAGE: RESEARCHERS DEVELOPED AN ANALYTICAL INSTRUMENT THAT USES AN ULTRAFAST LASER FOR PRECISE TEMPERATURE AND CONCENTRATION MEASUREMENTS OF HYDROGEN. THEY USED IT TO STUDY THE HYDROGEN FLAME SHOWN HERE. view more
CREDIT: ALEXIS BOHLIN, LULEÅ UNIVERSITY OF TECHNOLOGY
WASHINGTON — Researchers have developed an analytical instrument that uses an ultrafast laser for precise temperature and concentration measurements of hydrogen. Their new approach could help advance the study of greener hydrogen-based fuels for use in spacecraft and airplanes.
“This instrument will provide powerful capabilities to probe dynamical processes such as diffusion, mixing, energy transfer and chemical reactions,” said research team leader Alexis Bohlin from Luleå University of Technology in Sweden. “Understanding these processes is fundamental to developing more environmentally friendly propulsion engines.”
In the Optica Publishing Group journal Optics Express, Bohlin and colleagues from Delft University of Technology and Vrije Universiteit Amsterdam, both in the Netherlands, describe their new coherent Raman spectroscopy instrument for studying hydrogen. It was made possible due to a setup that converts broadband light from a laser with short (femtosecond) pulses into extremely short supercontinuum pulses, which contain a wide range of wavelengths.
The researchers demonstrated that this supercontinuum generation could be performed behind the same type of thick optical window found on high-pressure chambers used to study a hydrogen-based engine. This is important because other methods for generating ultrabroadband excitation don’t work when these types of optical windows are present.
“Hydrogen-rich fuel, when made from renewable resources, could have a huge impact on reducing emissions and make a significant contribution to alleviating anthropogenic climate change,” said Bohlin. “Our new method could be used to study these fuels under conditions that closely resemble those in rocket and aerospace engines.”

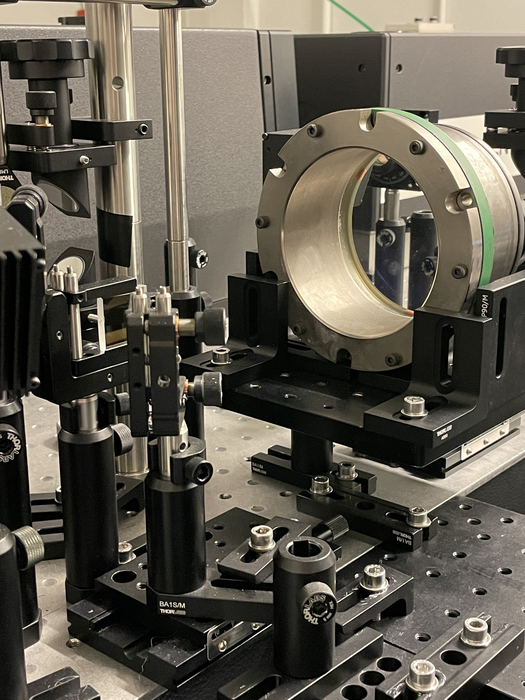

The researchers developed a way to perform supercontinuum generation behind the same type of thick optical window found on high-pressure chambers used to study a hydrogen-based engine. Other methods for generating ultrabroadband excitation don’t work when these types of optical windows are present.
CREDIT
Alexis Bohlin, Luleå University of Technology
Getting light in
There is much interest in developing aerospace engines that run on renewable hydrogen-rich fuels. In addition to their sustainability appeal, these fuels have among the highest achievable specific impulse—a measure of how efficiently the chemical reaction in an engine creates thrust. However, it has been very challenging to make hydrogen-based chemical propulsion systems reliable. This is because the increased reactivity of hydrogen-rich fuels substantially changes the fuel mixture combustion properties, which increases the flame temperature and decreases ignition delay times. Also, combustion in rocket engines is generally very challenging to control because of the extremely high pressures and high temperatures encountered when traveling to space.
“The advancement of technology for sustainable launch and aerospace propulsion systems relies on a coherent interplay between experiments and modeling,” said Bohlin. “However, several challenges still exist in terms of producing reliable quantitative data for validating the models.”
One of the hurdles is that the experiments are usually run in an enclosed space with limited transmission of optical signals in-and-out through optical windows. This window can cause the supercontinuum pulses needed for coherent Raman spectroscopy to become stretched out as they go through the glass. To overcome this problem, the researchers developed a way to transmit femtosecond pulsed laser through a thick optical window and then used a process called laser induced filamentation to transform it into supercontinuum pulses that remain coherent on the other side.
For the new technique, the researchers developed a way to transmit a femtosecond pulsed laser through a thick optical window and then used a process called laser induced filamentation to expand it into a supercontinuum pulse that remains coherent. The range wavelengths in the expanded pulse is pictured.
CREDIT
Alexis Bohlin, Luleå University of Technology
Studying a hydrogen flame
To demonstrate the new instrument, the researchers set up a femtosecond laser beam with the ideal properties for supercontinuum generation. They then used it to perform coherent Raman spectroscopy by exciting hydrogen molecules and measuring their rotational transitions. They were able to demonstrate robust measurements of hydrogen gas over a wide range of temperatures and concentrations and also analyzed a hydrogen/air diffusion flame similar to what would be seen when a hydrogen-rich fuel is burned.
The researchers are now using their instrument to perform a detailed analysis in a turbulent hydrogen flame in hopes of making new discoveries about the combustion process. With a goal of adopting the method for research and testing of rocket engines, the scientists are exploring the limitations of the technique and would like to test it with hydrogen flames in an enclosed slightly pressurized housing.
Paper: F. Mazza, A. Stutvoet, L. Castellanos, D. Kliukin, A. Bohlin, “Coherent Raman spectroscopy on hydrogen with in-situ generation, in-situ use, and in-situ referencing of the ultrabroadband excitation,” Opt. Express, 30, 20, 35232-35245 (2022).
DOI: 10.1364/OE.456817.
About Optics Express
Optics Express reports on scientific and technology innovations in all aspects of optics and photonics. The bi-weekly journal provides rapid publication of original, peer-reviewed papers. It is published by Optica Publishing Group and led by Editor-in-Chief James Leger of the University of Minnesota, USA. Optics Express is an open-access journal and is available at no cost to readers online. For more information, visit Optics Express.
About Optica Publishing Group (formerly OSA)
Optica Publishing Group is a division of Optica (formerly OSA), Advancing Optics and Photonics Worldwide. It publishes the largest collection of peer-reviewed content in optics and photonics, including 18 prestigious journals, the society’s flagship member magazine, and papers from more than 835 conferences, including 6,500+ associated videos. With over 400,000 journal articles, conference papers and videos to search, discover and access, Optica Publishing Group represents the full range of research in the field from around the globe.
Hydrogen flame analysis (VIDEO)
JOURNAL
Optics Express
ARTICLE TITLE
Coherent Raman spectroscopy on hydrogen with in-situ generation, in-situ use, and in-situ referencing of the ultrabroadband excitation
ARTICLE PUBLICATION DATE
13-Sep-2022
